Elevate Your Security Setup: HIKVISION NVRs for 2023’s Demands

Sean WoolfJune 25, 202312 Mins read216 Views

When it comes to video recording technology, it’s essential to understand the difference between Network Video Recorders (NVRs) and Digital Video Recorders (DVRs). While both serve the purpose of storing and reviewing video footage, they differ in their functionality and compatibility.

DVRs, which emerged in the late 90s, are designed to accept and digitally compress analog or digital video via coaxial connections. They are commonly used in legacy surveillance systems that rely on analog cameras. DVRs are equipped with coaxial sockets and are capable of handling both analog and digital inputs.

On the other hand, HIKVISION NVR are specifically built to work with IP-based security camera systems. They serve as the central hub for these systems, providing storage and review capabilities for CCTV footage. NVRs rely on a digital input and are compatible with network protocols, making them suitable for IP cameras.

The advantage of an NVR-based system lies in its ability to leverage the processing power of IP cameras. As the video is compressed by the cameras themselves, the NVR can dedicate its resources to advanced functions such as motion detection and AI-based analytics. This eliminates the need for costly subscription services and puts the control of storage and analysis in the hands of the device owner.

When choosing between an NVR and a DVR, it’s crucial to consider your specific requirements and the type of cameras you intend to use. If you’re building a new IP-based surveillance system or upgrading an existing one, an NVR offers compatibility, scalability, and advanced features that align with modern security needs.

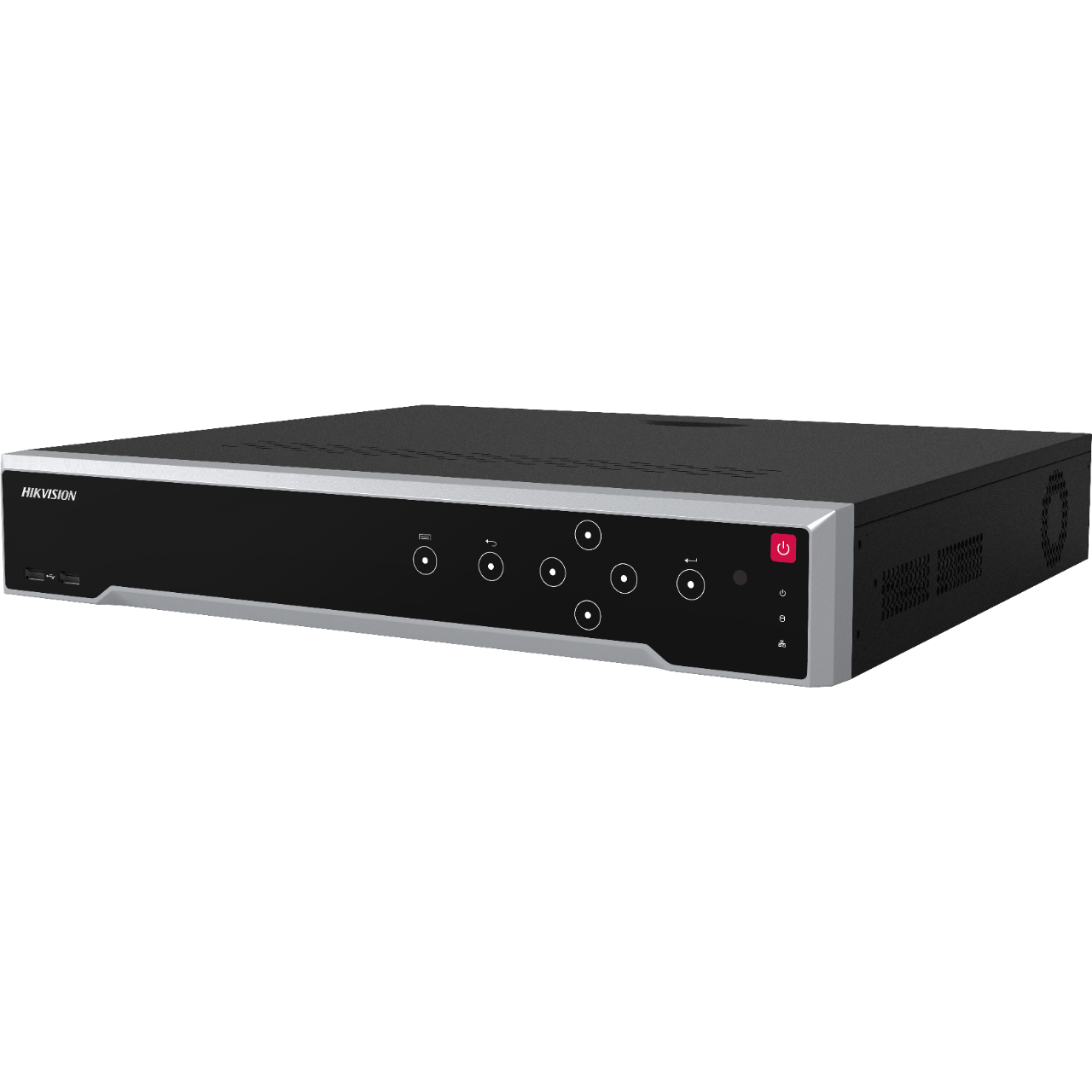

HIKVISION DS-7716NI-K4/16P 16-ch 1.5U 16 PoE 4K NVR

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
Plug & play with 16 power-over-Ethernet (PoE) interfaces
Up to 160 Mbps incoming bandwidth

HIKVISION DS-7716NI-Q4 16-ch 1.5U 4K NVR

DS-7716NI-Q4

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity
1 HDMI and 1 VGA interfaces: simultaneous video output
Up to 160 Mbps incoming bandwidth
4 HDDs for continuous video recording

HIKVISION DS-7732NI-I4(B) 32-ch 1.5U 4K NVR

DS-7732NI-I4(B)

Up to 32 channel IP cameras can be connected
Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
4 HDDs for continuous video recording
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Supports dual-stream recording to save time and bandwidth.

HIKVISION DS-7732NI-I4-24P 32-ch 1.5U 24 PoE 4K NVR

DS-7732NI-I4-24P

Up to 32 channel IP cameras can be connected
Up to 2-ch @ 12 MP/16-ch @ 1080p decoding capacity
2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output
4 HDDs for continuous video recording
Plug & Play with 24 Power-over-Ethernet (PoE) interfaces
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Supports dual-stream recording to save time and bandwidth

HIKVISION DS-7732NI-K4/16P 32-ch 1.5U 16 PoE 4K NVR

Up to 32-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
Plug & play with 16 power-over-Ethernet (PoE) interfaces
Up to 256 Mbps incoming bandwidth

HIKVISION DS-7604NXI-K1 4-ch 1U K Series AcuSense 4K NVR

Up to 4-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
Up to 40 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7608NXI-I2/8P/S 8-ch 1U 8 POE AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 8-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-7608NXI-I2/S 8-ch 1U AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 8-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-7608NXI-K2 8-ch 1U K Series AcuSense 4K NVR

Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7608NXI-K2/8P 8-ch PoE 1U K Series AcuSense 4K NVR

Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7616NXI-I2/16P/S 16-ch 1U 16 POE AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 16-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-7616NXI-I2/S 16-ch 1U AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 16-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-7616NXI-K1 16-ch 1U K Series AcuSense 4K NVR

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7616NXI-K2 16-ch 1U K Series AcuSense 4K NVR

DS-7616NXI-K2

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7632NXI-K2 32-ch 1U K Series AcuSense 4K NVR

DS-7632NXI-K2

Up to 32-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 256 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7716NXI-I4/16P/S 16-ch 1.5U 16 POE AcuSense 4K NVR

DS-7716NXI-I4/16P/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Up to 16-ch IP camera inputs
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Up to 16-ch 1080p decoding capability
Up to 160 Mbps incoming bandwidth

HIKVISION DS-7716NXI-I4/S 16-ch 1.5U AcuSense 4K NVR

DS-7716NXI-I4/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 16-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-7716NXI-K4 16-ch 1.5U K Series AcuSense 4K NVR

DS-7716NXI-K4

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7732NXI-I4/16P/S 32-ch 1U 16 POE AcuSense 4K NVR

DS-7732NXI-I4/16P/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 16-ch 1080p decoding capability

HIKVISION DS-7732NXI-I4/S 32-ch 1U AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-7732NXI-K4 32-ch 1.5U K Series AcuSense 4K NVR

DS-7732NXI-K4

Up to 32-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 256 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7732NXI-K4/16P 32-ch 1.5U 16 POE K Series AcuSense 4K NVR

Up to 32-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 256 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

HIKVISION DS-7808NXI-I2/8P/S 8-ch 1U 8 POE AcuSense 4K NVR

DS-7808NXI-I2/8P/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 1-ch facial recognition for video stream
Up to 4-ch facial recognition for face picture
Up to 8-ch IP camera inputs
Up to 16-ch 1080p decoding capability

HIKVISION DS-7808NXI-I2/S 8-ch 1U AcuSense 4K NVR

DS-7808NXI-I2/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream
Up to 4-ch facial recognition for face picture
Up to 8-ch IP camera inputs
Up to 16-ch 1080p decoding capability

HIKVISION DS-7816NXI-I2/16P/S 16-ch 1U 16 POE AcuSense 4K NVR

DS-7816NXI-I2/16P/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream
Up to 4-ch facial recognition for face picture
Up to 16-ch IP camera inputs
Up to 16-ch 1080p decoding capability

HIKVISION DS-7916NXI-I4/16P/S 16-ch 1.5U 16 POE AcuSense 4K NVR

DS-7916NXI-I4/16P/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Up to 16-ch IP camera inputs
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Up to 16-ch 1080p decoding capability
Up to 320 Mbps incoming bandwidth

HIKVISION DS-7932NXI-I4/16P/S 32-ch 1U 16 POE AcuSense 4K NVR

DS-7932NXI-I4/16P/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Up to 16-ch 1080p decoding capability
Up to 320 Mbps incoming bandwidth

HIKVISION DS-96128NI-H24R 128-ch 4U 8K Super NVR

DS-96128NI-H24R

Up to 128-ch IP camera inputs
Up to 48-ch@1080p decoding capacity
Up to 1 Gbps incoming bandwidth and 1 Gbps outgoing bandwidth
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

HIKVISION DS-96256NI-H24R 256-ch 4U 8K Super NVR

DS-96256NI-H24R

Up to 256-ch IP camera inputs
Up to 48-ch@1080p decoding capacity
Up to 1.25Gbps incoming bandwidth and 1.25Gbps outgoing bandwidth
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

HIKVISION DS-7604NI-K1/4P/4G 4-ch Mini 1U 4 POE 4G NVR

DS-7604NI-K1/4P/4G

Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
Up to 40 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth
H.265+/H.265/H.264+/H.264 video compression
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
4G wireless network
Support network keep alive, data monitoring, used data real time display, data usage notification

HIKVISION DS-7608NI-K1/8P/4G 8-ch Mini 1U 8 POE 4G NVR

DS-7608NI-K1/8P/4G

Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
Up to 80 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth
H.265+/H.265/H.264+/H.264 video compression
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
4G wireless network
Support network keep alive, data monitoring, used data real time display, data usage notification

HIKVISION DS-7608NI-K2/8P/4G 8-ch 1U 8 POE 4G NVR

DS-7608NI-K2/8P/4G

Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
Up to 80 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth
H.265+/H.265/H.264+/H.264 video compression
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
4G wireless network
Support network keep alive, data monitoring, used data real time display, data usage notification

HIKVISION DS-7616NI-K2/16P/4G 16-ch 1U 16 POE 4G NVR

DS-7616NI-K2/16P/4G

Up to 16-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
Up to 160 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth
H.265+/H.265/H.264+/H.264 video compression
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
4G wireless network
Support network keep alive, data monitoring, used data real time display, data usage notification

HIKVISION DS-7632NXI-I2/16P/S 32-ch 1U 16 POE AcuSense 4K NVR

DS-7632NXI-I2/16P/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-7632NXI-I2/S 32-ch 32-ch 1U AcuSense 4K NVR

DS-7632NXI-I2/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 32-ch 1080p decoding capability

HIKVISION DS-96128NI-H16R 128-ch 3U 8K Super NVR

DS-96128NI-H16R

Up to 128-ch IP camera inputs
Up to 48-ch@1080p decoding capacity
Up to 1 Gbps incoming bandwidth and 1 Gbps outgoing bandwidth
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

HIKVISION DS-E04NI-Q1 SSD NVR

DS-E04NI-Q1

Powered by eSSD technology
Low power consumption
H.265+/H.265/H.264+/H.264 video compression
Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
Up to 4-ch 1080p decoding capability

HIKVISION DS-E04NI-Q1 SSD NVR

DS-E04NI-Q1/4P

Powered by eSSD technology
Low power consumption
H.265+/H.265/H.264+/H.264 video compression
Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
Up to 4-ch 1080p decoding capability

HIKVISION DS-E08NI-Q1 SSD NVR

DS-E08NI-Q1

Powered by eSSD technology
Low power consumption
H.265+/H.265/H.264+/H.264 video compression
Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 8-ch network camera inputs
Up to 4-ch 1080p decoding capability

HIKVISION DS-E08NI-Q1/8P SSD NVR

DS-E08NI-Q1/8P

Powered by eSSD technology
Low power consumption
H.265+/H.265/H.264+/H.264 video compression
Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 8-ch network camera inputs
Up to 4-ch 1080p decoding capability

In this section, we delve into the realm of intelligent features and analytics that can elevate the capabilities of Network Video Recorder (NVR) systems. These advanced functionalities enable you to harness the power of artificial intelligence (AI) for enhanced surveillance.

One of the key intelligent features of NVR systems is motion detection. With motion detection algorithms, your NVR can identify and flag any movement within the camera’s field of view. This feature reduces the need to review hours of footage manually and allows you to focus on critical events, saving time and improving efficiency.

Object detection is another powerful tool offered by intelligent NVR systems. By analyzing the video feed, the NVR can identify specific objects such as people, vehicles, or packages. This capability enhances security by providing alerts for suspicious activities or unauthorized objects in restricted areas.

Furthermore, facial recognition technology is increasingly being integrated into HIKVISION NVR systems. By recognizing faces captured by the cameras, the NVR can match them against a database of known individuals. This feature is particularly useful in access control scenarios, allowing for automated identification and verification.

Analytics algorithms can also be applied to video footage for extracting valuable insights. For example, people counting algorithms can provide data on the number of individuals entering or exiting a specific area, aiding in crowd management and occupancy analysis. Similarly, heat mapping algorithms can identify high-traffic areas, enabling you to optimize the layout of your premises.

When choosing an NVR system, consider the availability and compatibility of intelligent features and analytics. Look for NVRs that offer a range of AI-powered functionalities tailored to your specific needs. Keep in mind that some advanced features may require additional hardware or licensing.

By leveraging intelligent features and analytics, you can transform your HIKD NVR system into a proactive surveillance tool that goes beyond basic recording. In the next part of our guide, we will discuss the importance of reliability and support in NVR systems.
